Project Title: High-Purity Silica Fume Pneumatic Conveying Project, Iligan

Subtitle: Safe, Contamination-Free Dense-Phase Conveying for High-Purity Silica Fume

Keywords: Pneumatic Conveying Case, Southeast Asia Pneumatic Conveying, High-Purity Pneumatic Conveying

Project Overview: This is a high-purity silica fume pneumatic conveying project implemented in Iligan, Philippines. The project demonstrates Shandong Headpowder Engineering Co., Ltd.'s ability to deliver advanced, reliable powder handling systems for demanding applications in Southeast Asia. The line is designed to transfer high-purity silica fume from storage silos, bag packers, or receiving hoppers to process equipment while maintaining material purity, stable flow, and completely dust-free operation. It is a representative pneumatic conveying case for the Southeast Asian market and an ideal example of high-purity pneumatic conveying in the mineral and chemical industries.

Why Silica Fume Is Difficult to Convey: Silica fume is an extremely fine by-product of silicon and ferrosilicon smelting. Its particles are submicron, its bulk density is very low, and its surface area is extremely high. These characteristics make the material highly fluidizable but also prone to agglomeration, sticking to pipe walls, and flow interruption. In high-purity applications, any friction-generated metal contamination, moisture pickup, or cross-contamination from residual materials can ruin the final product. Therefore, the conveying system must operate at a carefully controlled velocity, use contact materials that do not shed particles, and include robust filtering and venting components.

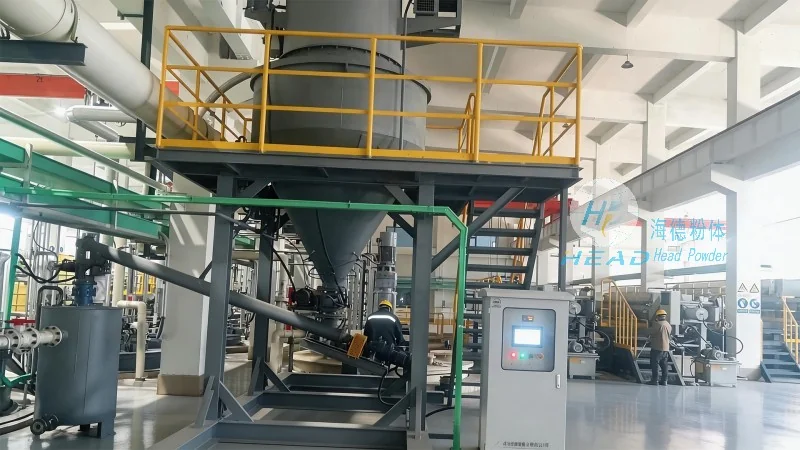

System Design and Technical Solution: The system supplied by Headpowder adopts a dense-phase pneumatic conveying principle. Material is conveyed in slugs or plugs at low velocity using compressed air as the driving force. This method greatly reduces abrasion on pipelines and degradation of silica fume. The main equipment includes a pressure conveying tank, high-efficiency rotary feeders, stainless steel pipelines with smooth internal surfaces, wear-resistant ceramic or stainless bends, directional control valves, and a process-friendly silo top filtration system. The conveying route is sealed from start to finish, preventing dust leakage and preserving high purity. The control system is PLC-based with a touchscreen operating interface, allowing operators to set parameters such as conveying pressure, batch weight, and blowing time accurately.

Material and Surface Finish: For high-purity silica fume, the parts in direct contact with the material are manufactured from selected stainless steel. The inner surfaces are polished and degreased to avoid any impurities entering the product. Gaskets and seals are selected from inert, wear-resistant materials to withstand both abrasion and repeated cleaning. The entire conveying loop can be dismantled easily for inspection and maintenance, which is a crucial requirement in industries where product safety and batch traceability matter.

Air Supply and Filtration: The system includes air preparation equipment with a dryer, multi-stage filters, and a pressure regulator. The compressed air is dry and oil-free, ensuring that moisture and oil mist do not contact the silica fume. This is especially important in tropical climates such as the Philippines, where ambient humidity is high. At the receiving silo and bag filter, a pulse-jet cartridge filter cleans the conveying air before it is discharged to the atmosphere. In this way, the operation is both clean and environmentally friendly.

Operational Benefits: Before the installation of this automatic conveying line, moving high-purity silica fume required manual handling and heavy labor. Such a procedure exposed workers to fine dust and increased the risk of contamination, spills, and inconsistent batch quality. With the new pneumatic conveying system, the material is transferred into process equipment automatically. Labor costs are reduced, product quality is stabilized, and production capacity is improved. The low-velocity dense-phase design also reduces pipe wear and energy consumption, lowering the total cost of ownership over the service life of the system.

Importance to Southeast Asia: This Iligan project is a valuable reference case for Southeast Asian laboratories, silica fume producers, ceramic plants, refractory manufacturers, and construction material producers. Due to the high humidity and unpredictable infrastructure conditions in some areas, pneumatic conveying systems must be robust, easy to install, and simple to maintain. Headpowder designs the system with these local conditions in mind. Equipment enclosures can be supplied with suitable protection ratings, and control components are selected for reliability under tropical conditions. The project in Iligan proves that a high-purity conveying solution can be delivered and commissioned successfully in the Philippines with minimal disruption to existing plant operations.

About Shandong Headpowder Engineering Co., Ltd.: Headpowder is a professional engineering company located in Shandong, China. The company specializes in the design, manufacture, installation, and commissioning of powder handling systems. Its core business covers pneumatic conveying, dust collection, silo storage, mixing, dosing, and related bulk material processing equipment. With rich experience in silica fume, cement, fly ash, alumina, and other powdery materials, Headpowder can provide a complete turnkey solution. The company serves customers worldwide, especially in Southeast Asia, with a strong focus on quality, safety, and after-sales service.
