Dust-Free Pneumatic Conveying of Light Powder in Kampong Cham

Keywords: Pneumatic conveying case, Southeast Asia pneumatic conveying, dust-free pneumatic conveying

Kampong Cham, a major province in Cambodia, has seen growing demand for efficient and environmentally friendly bulk material handling. This article describes one typical pneumatic conveying case completed by Shandong Headpowder Engineering Co., Ltd. in Kampong Cham. The project, officially titled "Dust-Free Pneumatic Conveying Engineering for Light Powder in Kampong Cham," is an excellent example of Southeast Asia pneumatic conveying. It solves the long-standing problem of dust leakage during the transport of light powder, and it helps local factories improve product quality, protect workers, and meet environmental requirements.

Light powders, such as flour, starch, fine chemicals, plastic powder, mineral fillers, and food ingredients, are easily disturbed by air. They tend to fly away at transfer points, block filters, and create a dusty workshop. If they are conveyed in open equipment or with poor sealing, several serious problems can occur. First, material loss raises production cost. Second, dust clouds can cause health problems. Third, dust accumulation may create a safety hazard. Therefore, the customer in Kampong Cham needed a robust and reliable anti-dust conveying system.

headpowder proposed a vacuum pneumatic conveying system with fully enclosed pipelines. In this system, light powder is fed from a storage hopper or bag emptying station into the conveying pipe. A Roots blower or vacuum pump creates negative-pressure airflow, which carries the powder to the receiving vessel. Because the pressure inside the pipe is lower than atmospheric pressure, any tiny gap will let outside air enter rather than dust escape. This is the key principle of dust-free pneumatic conveying. The conveying velocity and air-to-material ratio can be adjusted according to particle size, moisture content, and bulk density.

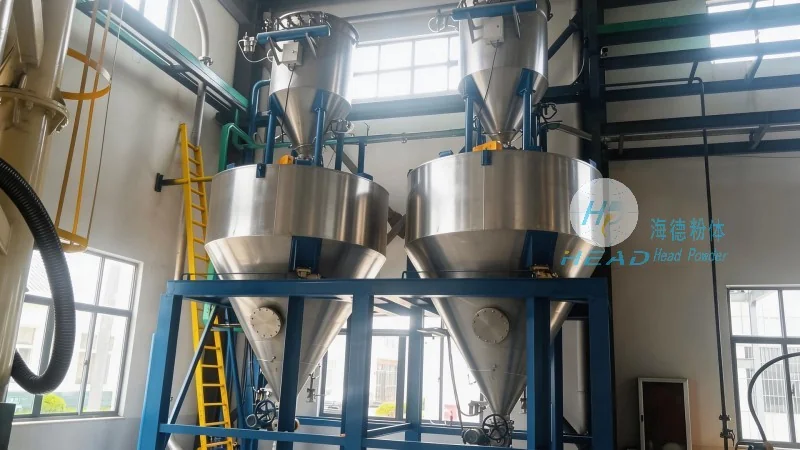

At the receiving end, the system is equipped with a high-efficiency reverse-pulse dust collector. The airflow enters the silo or receiving hopper, where filter cartridges separate powder from air. Clean air is exhausted through the top, while powder collected on the filter surface is cleaned by pulse-jet back-flush and returned to the silo. This design keeps dust concentration under control and ensures that no visible dust is discharged. A rotary airlock valve is installed under the silo to discharge material continuously while maintaining an airtight seal. All valves and piping joints are carefully selected and tested to prevent leakage under actual working conditions.

Since Kampong Cham is located in the tropical monsoon climate zone, the design also considered high temperature, high humidity, and heavy rainfall. Moisture can make light powder sticky, causing blockages and poor flow. For this reason, headpowder selected airtight components and smooth stainless steel or carbon steel pipelines with proper slope and wall thickness. The system also has a cleaning and maintenance port, making it convenient for operators to inspect and maintain the pipeline. These measures ensure reliable operation all year round, even in the humid Southeast Asian climate.

The project result is remarkable. After installation and commissioning, the site became clean and dust-free. The customer measured the material loss rate and found that it was greatly reduced. The working environment also improved: dust no longer floats in the air, the floor remains clean, and operator health is protected. The conveying capacity is stable and can be easily adjusted, helping the factory coordinate with different production lines. This project is regarded as one of the successful anti-dust pneumatic conveying cases in Southeast Asia.

Shandong Headpowder Engineering Co., Ltd. is the company behind this successful project. The company is known as headpowder in the industry and is headquartered in Shandong, China. It specializes in pneumatic conveying technology, powder handling equipment, silo design, weighing systems, and complete plant engineering. The company provides services from process design and equipment manufacturing to installation, commissioning, and after-sales support. For customers in Cambodia, Southeast Asia, and other regions, headpowder offers customized solutions based on the characteristics of the powder, the site layout, and production goals.
