Positive Pressure Conveying of Phosphate Powder, Lima, Peru

Subtitle: Latin American Pneumatic Conveying Case | Pneumatic Conveying Project in Lima

Keywords: Pneumatic Conveying Case, Latin America Pneumatic Conveying, Lima Pneumatic Conveying

The project titled "Positive Pressure Pneumatic Conveying of Phosphate Powder in Lima, Peru" is a significant reference case for headpowder in the Latin American market. The customer needed to transport fine phosphate powder from storage to mixing and granulation units. Because phosphate powder is corrosive and abrasive, a positive pressure dilute-phase conveying method was selected to ensure stable material flow and reduce pipeline wear. The previous mechanical conveyors suffered from dust leakage and frequent breakdowns, so the new enclosed pneumatic system was regarded as a major upgrade.

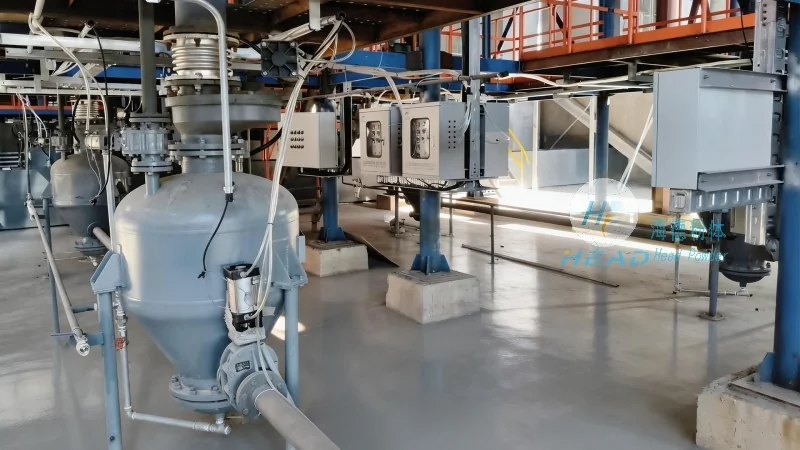

Shandong Headpowder Engineering Co., Ltd. (headpowder), based in Shandong, China, supplied the complete system. The scope included engineering design, equipment manufacturing, sea freight, installation guidance and commissioning. The equipment was manufactured in China and shipped to Callao port, then transported to the plant site in Lima. The main equipment covers a positive displacement blower, rotary airlock feeder, conveying pipeline, pulse-jet bag filter, control panel and safety valves. All components are designed for Lima's humid environment and 24-hour continuous operation.

The system conveys phosphate powder over 180 meters at a capacity of 15 tons per hour, with a conveying pressure of 0.05–0.08 MPa. Careful calculation of pipe diameter and airflow velocity creates a stable solid-to-air ratio, avoiding blockage and material degradation. A variable frequency drive allows the conveying capacity to be adjusted from 60% to 100% according to production requirements. The material has a bulk density of 0.9–1.2 t/m³ and particle size of 80–200 mesh. Since the powder absorbs moisture easily, the pipeline is sealed and moisture-proof filters are installed. Wear-resistant cast iron is used for the feeder, and ceramic-lined bends protect the elbows.

A PLC-based control system automatically manages the blower, feeder and valves. Operators can monitor pressure, motor current and material level from the HMI screen. The system is interlocked with upstream and downstream equipment for safe start and stop. Alarm and fault diagnosis functions help operators quickly locate problems. This reduces manual maintenance and improves reliability, which is critical for plants that operate around the clock.

The successful implementation in Lima demonstrates headpowder's cross-border project capability. During commissioning, engineers adjusted the blower frequency and air pressure according to local material samples, ensuring the conveying speed and output met all guarantees. For Latin America, this project provides an excellent example of efficient and environment-friendly pneumatic conveying. It helps fertilizer producers reduce dust emissions, lower energy consumption and improve product quality. Compared with mechanical conveying, positive pressure conveying has fewer moving parts, simpler maintenance and more flexible routing. This project has become a benchmark for similar fertilizer industry applications in Peru.

Shandong Headpowder Engineering Co., Ltd. specializes in pneumatic conveying systems, dust collection and bulk solid handling equipment. The company has completed many projects around the world, including in Asia, Africa, South America and the Middle East. Our integrated team provides process design, mechanical design, electrical automation and after-sales support.

For this project, the contact person is Manager Zhang. Company address: Shandong Province, China. WeChat: 15662777102. If you need similar pneumatic conveying systems for phosphate powder, lime, cement, fly ash or other bulk materials, please contact us for professional technical advice and a cost-effective quotation.

In summary, the phosphate powder positive pressure conveying project in Lima, Peru solved the customer's production bottleneck and strengthened headpowder's brand influence in Latin America. With ongoing innovation and strict project management, headpowder is committed to providing superior pneumatic conveying solutions to customers worldwide.
