Title: Inert-Gas Pneumatic Conveying for Danish Rare Earth Powder

Subtitle: A European Pneumatic Conveying Case Study for Safe and Oxidation-Free Handling of Reactive Rare Earth Powders

Keywords: Pneumatic Conveying Case, European Pneumatic Conveying, Inert Gas Protected Pneumatic Conveying

Shandong Headpowder Engineering Co., Ltd. is proud to present a landmark project: the inert-gas pneumatic conveying system delivered for a rare earth powder processing facility in Aalborg, Denmark. This project stands as an outstanding example of European pneumatic conveying applied to highly reactive fine powders, demonstrating how advanced engineering can solve the unique challenges of handling rare earth materials with both safety and precision. The installation was designed, manufactured, and commissioned by Headpowder, a leading Chinese bulk solids handling engineering company headquartered in Shandong, China. The successful completion of this project further strengthens Headpowder’s reputation as a trusted partner for international clients demanding the highest standards in powder handling technology.

Rare earth powders are essential precursors for many modern technologies, including permanent magnets, catalytic converters, phosphors, and advanced electronic components. However, these powders pose significant safety and technical difficulties during transportation, feeding, blending, and storage. Most rare earth metals and their alloys are highly reactive to oxygen and moisture. When exposed to ambient air, fine particles may undergo rapid oxidation, generating excessive heat or even igniting spontaneously. Moreover, even slight oxidation can degrade the chemical purity and physical properties of the powder, rendering entire batches unsuitable for high-end manufacturing. Therefore, conventional pneumatic conveying using air is strictly prohibited for this material class. To overcome these issues, Headpowder engineered a dedicated inert-gas pneumatic conveying system that uses nitrogen as the conveying medium, maintaining an oxygen-free environment throughout the entire process from the feed hopper to the receiving vessel.

The project in Aalborg required handling a fine rare earth powder with a bulk density ranging from 2.5 to 4.0 g/cm³, a particle size distribution of approximately 1 to 50 micrometres, and a high tendency for electrostatic charging. The requested conveying capacity was 1.5 tonnes per hour, with a conveying distance of over 80 meters and a vertical lift of 12 meters. Given the high value of the material and the strict quality requirements, the system had to operate in a completely closed loop, preventing both oxygen ingress and powder leakage. Headpowder selected a dense-phase pneumatic conveying approach, which uses low gas velocity and high solid-to-gas ratio to minimise particle attrition and pipeline wear. The low velocity also reduces electrostatic generation and avoids the risk of dust explosion. All system components were constructed from 316L stainless steel with an internal surface finish of Ra ≤ 0.4 micrometres to ensure easy cleaning and prevent product contamination.

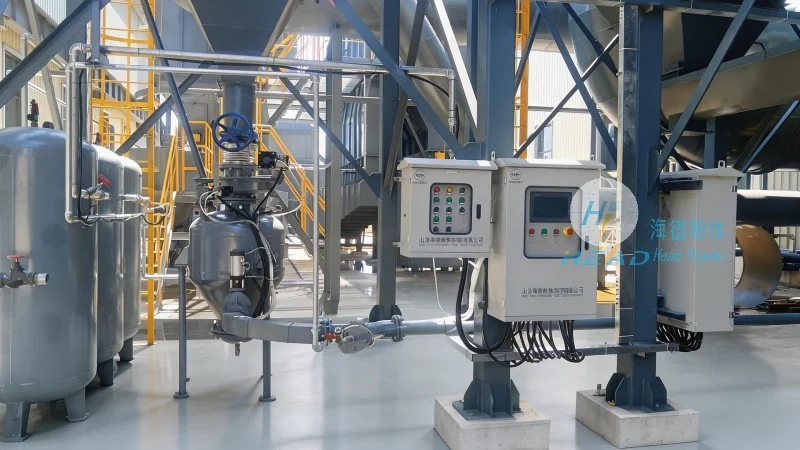

The core of the fed system consists of a pressure vessel type conveying pump, a nitrogen supply unit, a closed-loop gas recirculation system, and a high-efficiency bag filter for dust collection. The feed hopper is connected to the conveying vessel through a sequence of double flap valves, which provide a tight seal during the charging cycle. After the material is loaded into the vessel, it is pressurised with nitrogen to a working pressure of 4 to 6 bar. The powdered material is then fluidised and propelled through the conveying pipeline to the downstream receiver, which is also inertised. A dedicated on-line oxygen analyser continuously monitors the oxygen concentration in all relevant parts of the line, interlocking with the system to stop conveying if the oxygen level rises above the safe threshold of 2%. In addition, the entire process is controlled by a programmable logic controller (PLC) with a human-machine interface (HMI) that allows operators to configure conveying parameters, monitor system status, and view alarm diagnostics in real time.

One of the most challenging aspects of this European pneumatic conveying installation was the long distance combined with the need for inert gas protection. In open-loop designs, large amounts of nitrogen would be consumed, leading to excessive operating costs. Headpowder solved this by implementing a closed-loop nitrogen recirculation system. The nitrogen that carries the powder to the receiver is continuously cleaned by a back-flushing filter, then returned to a booster blower and reintroduced into the conveying vessel. With this design, nitrogen consumption is reduced to less than 10 cubic metres per hour under normal operating conditions, which represents a substantial cost saving for the customer. The filter itself is a pulsed-jet cartridge type, equipped with a high-efficiency particulate air (HEPA) grade filter element that captures particles down to 0.3 micrometres, ensuring that the recycled nitrogen remains free of fine dust. This closed-loop arrangement not only saves energy but also prevents any possible release of hazardous dust into the atmosphere, fully meeting the stringent environmental regulations of Denmark and the European Union.

Another significant concern for rare earth powders is the risk of contamination between different product grades. In many production facilities, the same conveying line must handle several variants of powder, each with a slightly different chemical composition and particle size. The Headpowder system includes a fully automated flushing and purging sequence that uses a high-velocity stream of clean nitrogen to purge the pipeline and filters after each batch. A modular pipe design with quick-clamp couplings also allows for rapid disassembly and manual cleaning when a complete grade change is required. The flushing process is programmable, allowing the operator to set the number of purge cycles and the duration of each pulse based on the specific product characteristics. This feature has been highly appreciated by the Danish customer, as it substantially minimises downtime between product changes and eliminates the risk of cross-contamination in high-value products.

Safety was the paramount design criterion for this inert-gas pneumatic conveying project. Rare earth powders, especially those in the neodymium-iron-boron family, can be pyrophoric. If a leak occurs and the powder comes into contact with air, it could ignite. Headpowder therefore integrated multiple layers of safety protection: explosion pressure relief panels on the receiving vessel, a high-speed oxygen sensor that triggers shutdown in under 200 milliseconds, and a nitrogen purging system that automatically floods the entire line with inert gas when a fault is detected. The conveying pipeline was also equipped with a grounding and bonding system to dissipate electrostatic charges, since static accumulation could lead to sparks. In addition, the system was designed with a low gas velocity of no more than 8 m/s in dense-phase operation, which not only reduces wear but also keeps the powder concentration above the rich limit, thereby preventing any possible dust deflagration. These safety measures align with the ATEX directives, making the installation fully compliant with European explosion protection standards.

The commissioning of the system in Aalborg was carried out remotely and on-site by Headpowder’s senior engineers. During the trial run, the system achieved a conveying rate of 1.55 tonnes per hour, slightly exceeding the design capacity. The oxygen concentration in the pipeline remained below 0.5% throughout the trial, and the powder purity showed no measurable change after conveying, as confirmed by the customer’s laboratory analysis. The noise level was kept below 75 decibels at a one-meter distance, and the overall energy consumption was significantly lower than that of conventional pneumatic conveyors due to the dense-phase and low-velocity design. The customer reported that the system has operated continuously for over 6,000 hours with only minimal maintenance, and the failure rate of the conveying line is near zero. This excellent performance demonstrates the high reliability and robust engineering of Headpowder’s inert-gas pneumatic conveying technology.

Shandong Headpowder Engineering Co., Ltd. is a specialised engineering company with extensive experience in the design and manufacture of pneumatic conveying systems, powder storage silos, dust collection systems, and related valves and fittings. With its manufacturing base in Shandong, China, Headpowder has supplied hundreds of projects across multiple industries, including chemical, metallurgy, new energy, food, and pharmaceuticals. The company’s superior engineering capabilities and customised solutions have earned it recognition not only in China but also among European and North American clients. The Denmark rare earth powder project is one of the latest examples of how Headpowder combines technical expertise with an understanding of local safety standards. For more information about this European pneumatic conveying case, or to discuss your own powder handling requirements, please contact the sales manager, Mr. Zhang. He is available via WeChat at 15662777102. Headpowder warmly welcomes enquiries from all over the world and looks forward to offering reliable and efficient pneumatic conveying solutions for both standard and challenging materials.
