SaudiKhobarGMPClosedPneumaticConveyingofPharmaPowder

Title: SaudiKhobarGMPClosedPneumaticConveyingofPharmaPowder

Subtitle: GMP Closed Pneumatic Conveying System for Pharmaceutical Powder in Khobar, Saudi Arabia

Keywords: Pneumatic conveying case, Middle East pneumatic conveying, pharmaceutical powder pneumatic conveying, GMP closed pneumatic conveying

This case study provides a comprehensive overview of the Saudi Khobar Pharmaceutical Powder GMP Closed Pneumatic Conveying Project, successfully executed by Shandong Headpowder Engineering Co., Ltd. (abbreviated as headpowder). As a leading engineering company in the field of pneumatic conveying and powder handling, headpowder has applied extensive expertise to deliver a state-of-the-art system that meets the demanding requirements of the pharmaceutical industry in the Middle East.

The project is located in Khobar, a major industrial city in the Eastern Province of Saudi Arabia. The customer is a pharmaceutical manufacturer that needed to transfer various fine powders, including active pharmaceutical ingredients (APIs) and excipients, from storage areas to production lines. The process required absolute confinement to prevent cross-contamination and ensure operator safety. Traditional mechanical conveying methods were unacceptable because of dust generation and material segregation risks. Therefore, a closed pneumatic conveying system was chosen as the optimal solution.

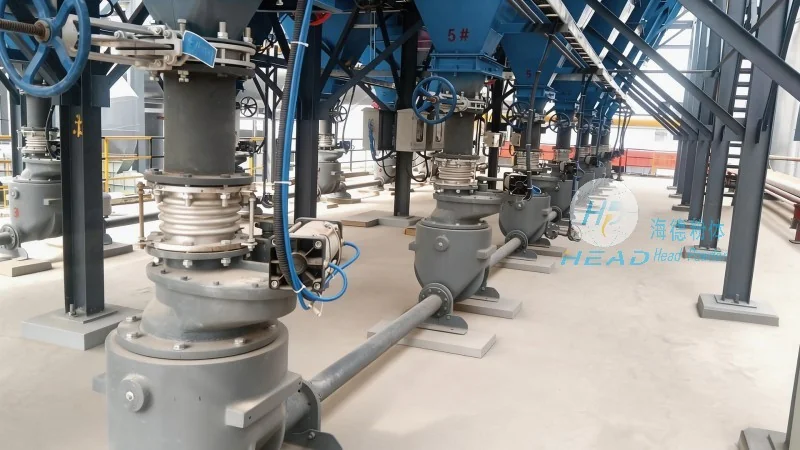

headpowder's engineering team designed a customized GMP closed pneumatic conveying system based on the specific characteristics of the powders. The system utilizes dense-phase conveying technology, which uses high pressure and low velocity to gently push materials through a sealed pipeline. This approach minimizes particle breakage and abrasion, which is critical for maintaining the quality of pharmaceutical powders. The conveying line is completely sealed, with no rotary valves or other components that could leak dust. All product-contact parts are manufactured from stainless steel 316L with a mirror finish, providing excellent corrosion resistance and facilitating cleaning and sterilization.

To ensure full GMP compliance, the system includes several important features. First, the entire conveying pipe and auxiliary components are designed for Clean-In-Place (CIP) and Sterilize-In-Place (SIP) procedures, allowing thorough cleaning without disassembly. Second, the system is equipped with a high-efficiency particulate air (HEPA) filter for venting air, ensuring that exhaust air is clean and free from particles. Third, the control system provides complete batch tracking and data logging, enabling operators to monitor every stage of the conveying process and maintain accurate records for regulatory compliance.

The successful completion of the Saudi Khobar project has further strengthened headpowder's presence in the Middle East market. This project is an outstanding example of GMP closed pneumatic conveying for pharmaceutical powders, demonstrating headpowder's commitment to quality, safety, and innovation. The client expressed great satisfaction with the system's performance, highlighting the significant reduction in dust and waste, the improved working environment, and the consistent product quality.
