An air extraction chamber is a key component in pneumatic conveying systems. It is used to separate conveyed material from the conveying air, reducing velocity and preventing product degradation. The chamber also helps to balance pressure and maintain stable material flow.

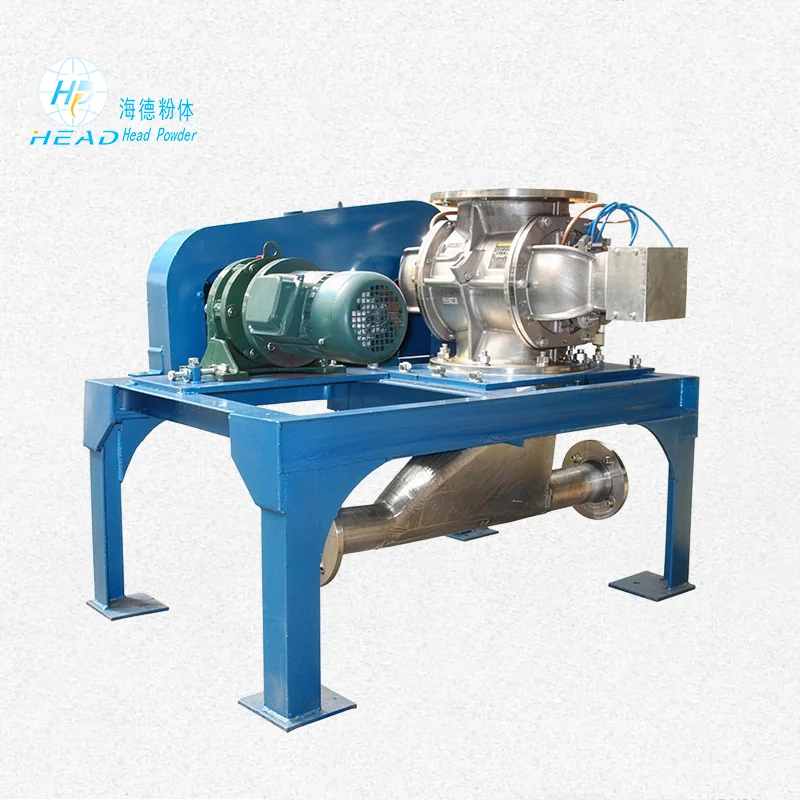

In a typical pneumatic conveying system, the air extraction chamber is installed at the inlet or after a rotary airlock. It allows the conveying air to be separated from the product stream while maintaining the required pressure differential. This prevents over-pressure and ensures consistent transfer.

The air extraction chamber is available in stainless steel and carbon steel. Stainless steel grades such as 304 and 316L provide excellent corrosion resistance and are suitable for food, pharmaceutical, and chemical industries. Carbon steel is a cost-effective option for standard applications and can be painted or coated for improved durability.

We can produce air extraction chambers with custom sizes, flange ratings, and connection types. Whether you need a small unit for a laboratory scale system or a large chamber for a high-capacity conveying line, our engineering team can design it according to your specifications. Internal surface finishing can be provided in options such as pickled and passivated, sandblasted, or polished to mirror finish.

Our chambers are designed for reliable operation in harsh environments. Welded seams are fully penetrated and inspected to ensure leak-tight performance. We use high-quality raw materials and provide material certificates upon request. The chambers are also available with different wall thicknesses to withstand pressure and abrasive wear.

The primary function of an air extraction chamber is to reduce the conveying velocity and allow the material to drop out of the air stream. It is particularly useful in vacuum conveying systems, where it helps protect the blower from fine particles. This extends the service life of downstream equipment and reduces maintenance costs.

We are a professional manufacturer specializing in pneumatic conveying accessories. Our production facility is equipped with CNC cutting machines, automatic welding equipment, and testing instruments. Every chamber undergoes pressure testing and dimensional inspection before shipment. This ensures that the product you receive meets the highest quality standards.

The price of an air extraction chamber depends on material grade, size, and custom features. Stainless steel costs more than carbon steel. Additional options such as flanges, brackets, or special surface treatments increase the total cost. We offer competitive factory prices and provide quick quotes based on your specifications.

Air extraction chambers are widely used in industries such as cement, coal, fly ash, grain, food ingredients, plastic pellets, and chemical powders. They are essential in both dense-phase and dilute-phase pneumatic conveying systems. The chamber works with rotary airlocks, dust collectors, and blowers to maintain an efficient material handling process. Proper sizing and installation of the chamber can significantly improve system stability and reduce energy consumption.

As a leading air extraction chamber manufacturer, we can supply standard and customized products at factory prices. Our team is ready to provide technical support and after-sales service. Please send us your drawings or detail requirements, and we will respond with a competitive quotation within 24 hours. Contact us to learn more about our air extraction chambers for pneumatic conveying.
