CleanPneumaticConveyingofFoodAdditivesinManizales

Clean Pneumatic Conveying of Food Additives in Manizales is a successful project by Shandong Headpowder Engineering Co., Ltd., also known as headpowder. The project is a model Latin American pneumatic conveying case, proving that food additive pneumatic conveying can be performed with outstanding hygiene, safety, efficiency, and reliability. It took place in Manizales, Colombia, a city located in the coffee-growing region of Caldas and home to a growing food processing industry.

Keywords: pneumatic conveying case, Latin America pneumatic conveying, food additive pneumatic conveying, clean pneumatic conveying.

Food additive powders are usually fine, easy to become airborne, and highly sensitive to moisture or contamination. In many traditional factories, ingredients are transferred with manual scoops, open hoppers, or mechanical conveyors that create dust and difficult cleaning issues. The Manizales project was developed for a producer that needed to handle a wide range of additive materials, including vitamins, mineral premixes, antioxidants, acidulants, flavorings, and functional food ingredients. The production environment had to satisfy strict food safety standards, so the entire powder transfer process needed to be contained.

Headpowder’s solution was a clean pneumatic conveying system designed around dense-phase conveying principles. In dense-phase operation, the additive is pushed through the pipeline in a gentle plug flow, rather than being blown at high velocity. This reduces particle degradation, dust generation, and pipe wear. It also allows the system to preserve the free-flowing characteristics of the additive powder. The line is supplied with filtered, dried compressed air, so the product does not absorb excess moisture. For oxidation-sensitive materials, the system can use nitrogen as the conveying gas. This also protects the additive’s instant solubility or blending performance during later processing.

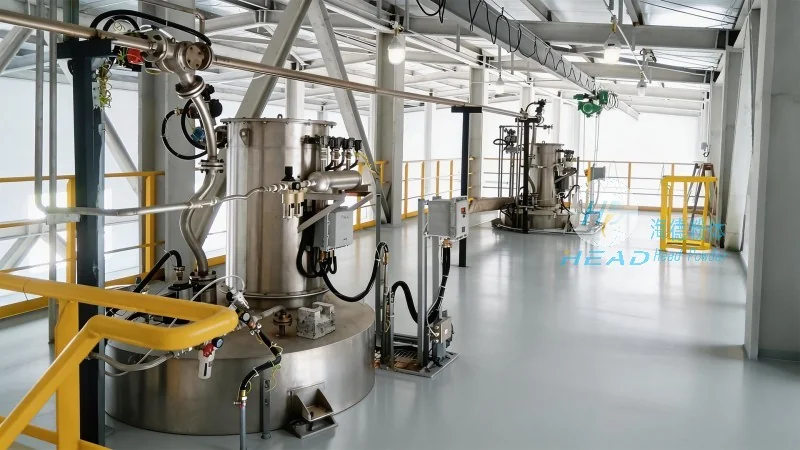

The complete conveying line includes a feeding vessel, automated rotary valves, stainless steel pipeline, long-radius bends, receiving hoppers, vent filters, and a PLC control system. All contact parts are made from food-grade stainless steel and polished with a smooth surface finish. Hygienic gaskets and quick-release couplings enable fast inspection, cleaning, and maintenance. These features help prevent cross-contamination between different food additive products in a multi-recipe plant.

Dust control was a key requirement in the Manizales factory. The feeding station is equipped with an integrated dust hood and filter to capture any airborne powder during loading. The receiving tank has a reverse-pulse cartridge filter that automatically cleans itself while the system is operating. As a result, the surrounding production areas remain clean, and no valuable product is lost to the atmosphere. This clean operation improves worker comfort and supports a food-safe environment. The bag filters are oversized so that the cleaning interval is long, reducing compressed air consumption and filter maintenance.

The conveying route had to fit into an existing building where floor space was limited. Pneumatic conveying offered maximum layout flexibility because the pipeline could be installed overhead, through walls, and around other machinery. This reduced civil construction work and minimized disturbance to ongoing production. The compact footprint of the equipment also freed up space for packaging, storage, and quality-control laboratories.

Automation played an important role in the project. The control system can run different recipes and store process parameters for each additive. Operators enter the required product on a touchscreen, and the system automatically adjusts conveying pressure, air speed, valve positions, and line cleaning. Batch monitoring and reporting functions improve traceability, which is essential for food safety audits. The same system can generate alarms and diagnostics, making troubleshooting faster and reducing downtime.

The company behind this delivery, Shandong Headpowder Engineering Co., Ltd., located in Shandong, China, has deep experience in powder handling and pneumatic conveying technology. Headpowder provided engineering design, equipment manufacturing, installation supervision, commissioning support, and operator training for the Manizales project. This case has become an important reference for Latin America, demonstrating that advanced clean pneumatic conveying for food additives is both practical and cost-effective. Local service partners and spare parts availability further reduce the user’s operational risk.

For more details about this clean pneumatic conveying case, or for a new food additive pneumatic conveying project, please contact Manager Zhang. Shandong Headpowder Engineering Co., Ltd. is based in Shandong, China. WeChat: 15662701277.
