Dustless Pneumatic Conveying of Powder Additives in Johor

Subtitle: A Turnkey Engineering Solution for Clean, Safe, and Efficient Powder Transfer in Southeast Asia

Keywords: pneumatic conveying case, Southeast Asia pneumatic conveying, Johor pneumatic conveying

In the dynamic industrial landscape of Johor, Malaysia, the demand for efficient and environmentally responsible powder handling systems has never been greater. Chemical additive producers and downstream manufacturers are increasingly turning to advanced pneumatic conveying technology to move fine powders, granules, and blended additives without dust escape, product degradation, or cross-contamination. This article presents a comprehensive overview of a recent dustless pneumatic conveying project delivered by Shandong Headpowder Engineering Co., Ltd. (abbreviated as Headpowder) for a leading chemical additives facility in Johor. The project exemplifies how modern dilute-phase and dense-phase conveying systems, combined with vacuum-assisted filtration and closed-loop pressure control, can achieve transfer rates of several tons per hour while maintaining an immaculate working environment.

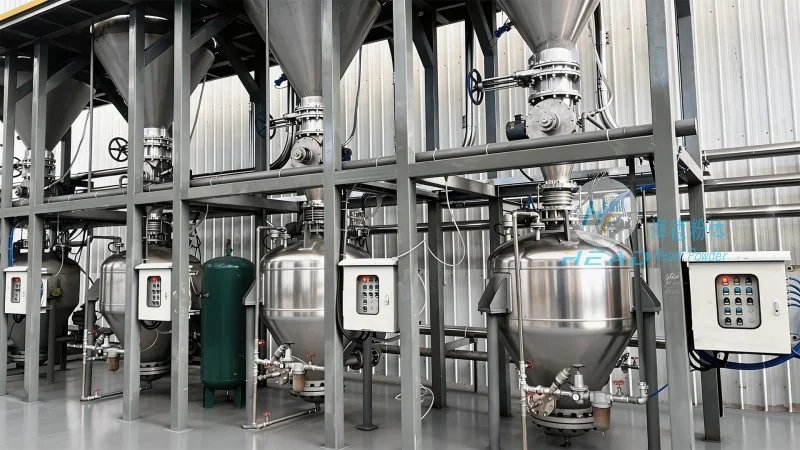

The core challenge in Johor, as in many Southeast Asian industrial hubs, is the handling of hygroscopic and finely milled powder additives. These materials tend to agglomerate when exposed to humid air, and conventional mechanical conveyors often create dust clouds at transfer points, leading to material loss, maintenance burdens, and health hazards for operators. Headpowder's engineering team designed a custom pneumatic conveying line that operates under negative pressure for source pickup, followed by positive-pressure dense-phase conveying for long-distance transfer. The system features a fully sealed pipeline network, a rotary airlock feeder, reverse-pulse cartridge filtration, and a PLC-based control system that monitors pressure, temperature, and flow velocity in real time. This design ensures that the entire process from silo discharge to mixer dosing is dustless, continuous, and repeatable.

One of the key innovations implemented in this Johor project was the use of a vacuum pickup nozzle integrated with a telescopic suction hood at the bag dumping station. Workers can now empty 25 kg bags of powder additives directly into the suction hood, and the integrated vacuum system instantly captures any airborne dust, filtering it through a HEPA-class cartridge before returning clean air to the workshop. The captured powder is then pneumatically conveyed to a central receiving hopper equipped with a high-level sensor, which triggers automatic switching between two destination bins. This not only eliminates the need for manual scooping and lifting but also reduces cycle time by approximately 40% compared to the client's previous manual transfer method.

Another critical aspect of the installation was the handling of multiple additive types with different particle sizes and bulk densities. The client required the flexibility to convey several grades of stearates, flow promoters, and antioxidant powders from the same transfer line without cross-contamination. Headpowder addressed this by implementing a pipe cleaning sequence using a high-velocity air blow-through between product changeovers. The PLC software includes a purge program that runs for a predetermined period, ensuring that residual material is flushed out of the pipelines and filters. This feature has been particularly valued by the Johor facility, as it allows just-in-time production with minimal downtime and no risk of batch contamination.

The project also placed strong emphasis on safety and compliance with Southeast Asian workplace regulations. All electrical panels, sensors, and valves are rated for hazardous area classification, and the conveying line is grounded to prevent electrostatic buildup. The dust collection system incorporates explosion venting panels on the filter housing, and the vacuum pump is installed in a separate acoustic enclosure to reduce noise levels below 75 dB at 1 meter. Operators received comprehensive training on system operation, maintenance, and emergency shutdown procedures. As a result, the Johor facility successfully passed an independent safety audit immediately after commissioning, with zero dust emissions recorded at all monitoring points.

From a technical standpoint, the pneumatic conveying system in Johor delivers a conveying capacity of up to 8 tons per hour over a horizontal distance of 120 meters, with a vertical lift of 18 meters. The conveying air velocity is automatically adjusted by a variable frequency drive on the Roots blower, based on the pressure drop across the pipeline. For friable powder additives, the system operates in dense-phase mode at low velocity to avoid particle breakage, while for free-flowing powders, the same line can operate in dilute-phase mode at higher velocity. This dual-mode capability, achieved through a patent-pending switch valve arrangement, provides exceptional flexibility and energy efficiency. The measured product-to-air ratio ranges from 5 to 15 kg per kg of air, depending on the material characteristics.

The success of this project in Johor has strengthened Headpowder's reputation as a reliable partner for pneumatic conveying solutions across Southeast Asia. The company, headquartered in Shandong, China, brings over a decade of engineering experience in bulk solids handling, with a focus on dustless, clean, and automated systems for the chemical, food, and mineral industries. Headpowder's turnkey services include process design, equipment fabrication, site installation, commissioning, and after-sales support. Every system is customized based on on-site free testing of powdery materials, using the company's mobile test loop to determine optimal conveying parameters. This commitment to verifiable performance and transparent commissioning has won contracts in Indonesia, Vietnam, Thailand, and now Malaysia.

For the specific application in Johor, the client provided free samples of their powder additives for testing at Headpowder's laboratory in Shandong. The test results showed a dust concentration of less than 1 mg per cubic meter inside the plant during full-load operation, which is far below the permissible exposure limits. Additionally, the moisture content of the conveyed powder was maintained within 0.02% of the original value, proving that the gas system's desiccant dryer and moisture barriers effectively protect hygroscopic materials. The client has since ordered a second line for their new production workshop, and has received a comprehensive maintenance manual along with a digital twin simulation model for operator training.

In conclusion, the dustless pneumatic conveying of powder additives in Johor demonstrates the immense value of applying modern pneumatic technology to traditional chemical processing environments. Shandong Headpowder Engineering Co., Ltd. succeeded not only in delivering a high-performance conveying system but also in elevating the overall operational standards of the Malaysian facility. With the continuous growth of the chemical additive market in Southeast Asia, the need for clean and efficient powder handling solutions will keep expanding. Headpowder remains dedicated to providing innovative, cost-effective, and safe conveying systems that meet the unique needs of each project, supporting the sustainable development of the industry in Johor and beyond.

Contact information: Shandong Headpowder Engineering Co., Ltd., located in Shandong, China. Sales Manager: Mr. Zhang. WeChat / WhatsApp: 15662777102. International inquiries are welcome, and free powder testing is available for potential projects.
