Fine Chemical Powder Vacuum Pneumatic Conveying in Istanbul

Case Study | Pneumatic Conveying in West Asia | Pneumatic Conveying in Istanbul

Keywords: pneumatic conveying case, West Asia pneumatic conveying, Istanbul pneumatic conveying, fine chemical powder handling, vacuum conveying system, Shandong Headpowder Engineering

This article presents a comprehensive overview of the successful vacuum pneumatic conveying project for fine chemical powders in Istanbul, Turkey. The project was engineered and delivered by Shandong Headpowder Engineering Co., Ltd., a leading Chinese company specializing in advanced pneumatic conveying systems and bulk solids handling solutions. Headpowder, as the company is commonly known, has established a strong reputation across international markets for providing reliable, efficient, and tailor-made conveying equipment that meets the demanding requirements of the chemical, pharmaceutical, food, and mineral industries. With its headquarters located in Shandong, China, the company has exported numerous complete conveying systems to clients in the Middle East, West Asia, Europe, and beyond.

The Istanbul project specifically focuses on the transfer of fine chemical powders under negative pressure, also referred to as vacuum conveying. Fine chemicals are characterized by their small particle size, low bulk density, and often cohesive or even hazardous properties. These characteristics make conventional mechanical conveying methods such as bucket elevators, screw conveyors, or belt conveyors less suitable because of issues like dust generation, material degradation, material segregation, and difficulties in maintaining a completely sealed environment. To overcome these challenges, Headpowder designed and supplied a fully enclosed vacuum pneumatic conveying system that operates on the principle of pressure differential. In such a system, a vacuum pump or vacuum generator creates a negative pressure inside the conveying line. The fine powder is then sucked from feed points, such as hoppers, mixers, or storage bins, through pipelines and into a receiving vessel or process equipment located at a higher elevation or at a distance way from the source.

The advantages of using vacuum pneumatic conveying for this Istanbul fine chemical plant are substantial. First, the system provides a completely dust-tight transfer that prevents any leakage of hazardous or valuable powders into the working environment. This is particularly important in Istanbul, where environmental and occupational safety regulations are strictly enforced. Second, vacuum conveying is gentle on the material. Because the conveying velocity can be precisely controlled by adjusting the vacuum level and the conveying air flow, the risk of particle breakage or degradation is minimized. This ensures that the quality and purity of the fine chemical powder remain intact throughout the entire transfer process. Third, the system design is highly flexible and permits the conveying of material from multiple source points to multiple destinations using a single vacuum line with diverter valves or by using multiple pick-up points in sequence. This flexibility is essential for producing various chemical products or for distributing powders to different packaging stations.

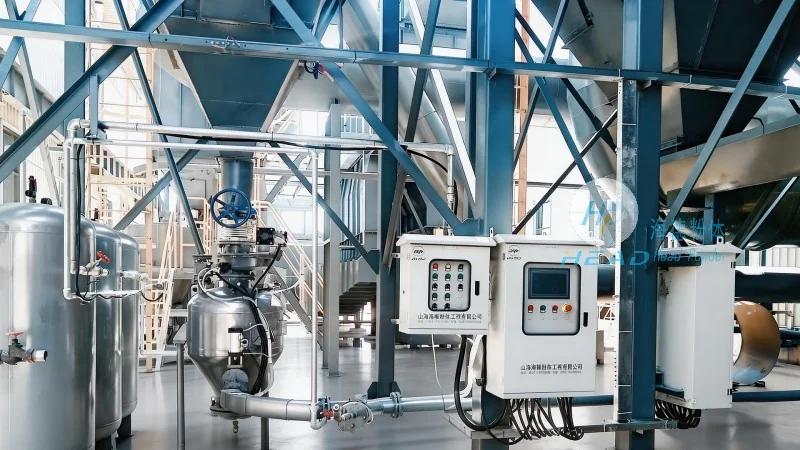

Shandong Headpowder Engineering Co., Ltd. is well known for its ability to provide turnkey solutions. For the Istanbul project, the scope of supply included a complete process design, manufacture of all key components, installation guidance, and commissioning supervision. The conveying system comprised a heavy-duty vacuum receiver with a quick-release discharge valve, a high-efficiency cartridge filter to separate the powder from the conveying air, a rotary airlock feeder, control valves, a silencer, and an energy-efficient vacuum pump package. All contact parts that are exposed to the fine chemical powder were carefully selected to be compatible with the chemical characteristics of the material. The filters were selected to handle the ultra-fine particles, often in the micron range, without excessive pressure drop or filter blockage. The PLC-based control system enabled automatic operation, integrated with the client's existing control architecture, and provided detailed monitoring of system vacuum pressure, filter cleaning cycles, conveying batch counts, and maintenance alarms.

One of the key considerations in the Istanbul project was the actual plant layout. The conveying distance exceeded 60 meters in some sections, with a vertical lifting height of approximately 15 meters. The fine chemical powder being conveyed had a bulk density ranging from 400 to 700 kg per cubic meter, and a typical conveying capacity of 2 to 3 tons per hour was required by the client. To ensure smooth transport over such distances without line blockage, Headpowder engineers carefully calculated the required air velocity, the conveying line diameter, and the vacuum pump capacity. They also implemented a dense-phase vacuum conveying strategy in certain segments, which allowed the powder to move in slugs or dunes at a lower velocity, thereby further reducing dust generation and product attrition. The pipes were manufactured from stainless steel with smooth internal surfaces and appropriate bends with large radius to reduce wear and material adhesion.

The project also required special attention to safety because many fine chemical powders are combustible or even explosive when dispersed in air. Therefore, the entire conveying system was equipped with explosion-venting panels, earth-bonding connections, and anti-static filter media. The vacuum system eliminated the risk of dust escaping into the atmosphere and also minimized the amount of air in the conveying line, which in turn reduced the risk of dust explosion. Additionally, the automatic control system included safety interlocks that shut down the system in the event of high filter pressure differential, low vacuum, or abnormal temperature. These features gave the Istanbul client full confidence in the reliability and safety of the equipment provided by Headpowder.

Furthermore, Headpowder provided a complete after-sales service package. During the commissioning phase, experienced engineers from Shandong Headpowder Engineering Co., Ltd. traveled to Istanbul to supervise installation and calibration of all sensors and control devices. They also trained the local plant operators on the proper operation, maintenance, and troubleshooting of the vacuum conveying system. A full set of documentation, including operating manuals, mechanical drawings, electrical diagrams, and maintenance schedules, was delivered in both Chinese and English. This comprehensive documentation allowed the client's technical team to operate the system independently and to maintain peak performance at all times. Spare parts for high-wear items such as filter cartridges, rotary feeder vanes, and sealing rings were also supplied to ensure uninterrupted production for at least two years of operation.

In conclusion, the Istanbul fine chemical powder vacuum pneumatic conveying project demonstrates the advanced technical capabilities and international delivery experience of Shandong Headpowder Engineering Co., Ltd. The successful implementation of this system has greatly improved the production efficiency, product quality, and workplace safety of the client's fine chemical operations. The company headpowder continues to serve as a trusted supplier for pneumatic conveying systems in West Asia and around the world. For inquiries about similar projects, contact Manager Zhang at Shandong Headpowder Engineering Co., Ltd., located in Shandong, China. WeChat: 15662777102.
