Madang,PNG:LithiumPowderEx-ProofPneumaticConveying

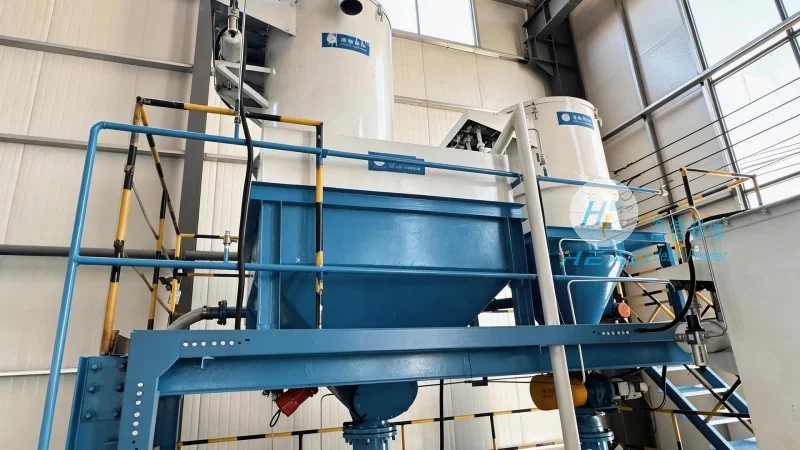

Madang, PNG: Lithium Powder Ex-Proof Pneumatic Conveying. This article presents a comprehensive engineering project case study focused on the safe and efficient transfer of lithium battery powder materials in Madang, Papua New Guinea. The project, officially titled "Madang, PNG: Lithium Powder Ex-Proof Pneumatic Conveying," represents a significant milestone for industrial material handling in the Oceania region. It combines advanced pneumatic conveying technology with stringent explosion-proof safety measures, ensuring that hazardous lithium-based powders are transported securely within a processing facility. The entire system is designed to prevent any potential ignition source from coming into contact with the fine, reactive dust particles, thereby safeguarding both personnel and equipment. This case study serves as a benchmark for future similar installations in remote yet environmentally sensitive locations.

Lithium powder is widely used in modern battery manufacturing, energy storage systems, and electric vehicle components. However, its finely divided form creates a high explosion risk when suspended in air. Any electrostatic discharge, mechanical spark, or excessive surface temperature can trigger a catastrophic dust explosion. Recognizing these inherent hazards, the engineering team focused on developing a pneumatic conveying solution that fully complies with international explosion-proof standards. The system employs closed-loop conveying pipelines, nitrogen purging, and pressure monitoring sensors. These components work together to maintain an inert atmosphere inside the conveying line, effectively eliminating the possibility of combustion. Additionally, all electrical equipment, including motors, valves, and control panels, is rated for hazardous areas, following strict ATEX and IECEx certification guidelines. The design philosophy prioritizes risk mitigation at every stage, from material intake to discharge point.

The Pneumatic Conveying System for lithium powder in Madang is designed to handle a continuous flow of material with minimal degradation and zero leakage. Unlike mechanical conveyors, which can generate friction and produce sparks, pneumatic conveying uses high-velocity gas to push or pull the powder through sealed pipes. This inherently safer method reduces moving parts and maintenance requirements while maintaining high throughput. In this particular project, a dilute phase conveying mode was selected, with an air velocity carefully calculated to keep the lithium powder airborne without causing pipe erosion. The conveying distance and elevation changes were taken into account during the system layout. A dedicated control system manages the pressure differentials, material-to-air ratio, and filter cleaning cycles, ensuring stable operation under varying feed conditions. The entire line is grounded with continuous bonding straps, preventing any static charge accumulation, which is a critical requirement for handling explosive dusts.

The location of the project, Madang, is a coastal province of Papua New Guinea, situated in the Oceania region. This geographic setting presents unique logistical and climatic challenges. High humidity, tropical temperatures, and salt-laden air near the coast demand corrosion-resistant materials and robust weatherproofing for all outdoor components. The equipment was specially coated with marine-grade finishes and stainless steel fasteners to withstand the aggressive environment. Furthermore, the remote site requires careful planning for transportation and installation. All components were modularized to facilitate sea freight and on-site assembly, reducing the risk of damage and minimizing installation time. The engineering team also provided comprehensive training for local operators, enabling them to efficiently manage the system and respond to any operational anomalies. This project demonstrates how advanced industrial technology can be successfully deployed in remote areas of Oceania while maintaining world-class safety standards.

As a leading manufacturer and system integrator, Headpowder, legally known as Shandong Headpowder Engineering Co., Ltd., brings extensive expertise in pneumatic conveying and powder processing. Headquartered in Shandong Province, China, the company has delivered numerous successful projects across Asia, Africa, and now Oceania. Their flagship technologies include dense phase conveying, dilute phase conveying, and customized explosion-proof solutions for combustible and reactive powders. For this Madang project, Headpowder acted as the main contractor, responsible for engineering design, equipment fabrication, factory testing, and supervision of field installation. Their in-house research and development team optimized the feed rate and gas velocity to accommodate the specific particle size distribution and moisture content of the lithium powder supplied by the client. This attention to detail ensures reliable performance and extended service life of the conveying pipeline, rotary airlock, and bag filter units.

The key to the success of this explosion-proof conveying project lies in its multi-layered safety architecture. First, the rotary airlock at the feed point creates an effective pressure seal, preventing backflow of flammable dust into the upstream process. Second, the conveying pipeline is equipped with rupture discs and explosion relief panels strategically placed at vulnerable sections. In the unlikely event of an internal explosion, these devices safely vent the overpressure, protecting the main vessel and downstream equipment. Third, a continuous gas detection system monitors oxygen levels within the pipeline; if oxygen concentration exceeds a safe threshold, the system automatically injects inert gas and activates alarms. Fourth, all metal components are bonded and grounded to a low-resistance earth grid, preventing potential differences that could cause static sparks. Finally, the entire plant area follows strict housekeeping and maintenance protocols to minimize dust accumulation on equipment surfaces. Together, these layers form a robust defense-in-depth strategy that is essential for any hazardous material handling facility.

The scope of the Madang project also includes a comprehensive pneumatic conveying control system featuring a human-machine interface (HMI) that displays real-time process variables such as pressure, flow rate, and material level. Operators can easily start and stop the system, adjust setpoints, and view historical trends. Remote monitoring capabilities allow the technical support team in China to access the system via secure internet connection, providing timely diagnostics and performance optimization. This digital integration reduces downtime and ensures that any process deviations are promptly addressed. Moreover, the control logic incorporates interlocking functions, such as automatic shutdown of the conveying compressor if the receiving hopper reaches high level or if the filter differential pressure becomes excessive. These proactive measures prevent equipment failures and maintain the integrity of the entire production line. The system is designed for 24/7 continuous operation, matching the demanding production schedules of a modern lithium battery material facility.

In terms of environmental impact, the closed pneumatic conveying system offers outstanding advantages compared to traditional open handling. No dust escapes into the surrounding atmosphere, significantly reducing air pollution and protecting the health of nearby workers. The system also consumes less energy than many alternative mechanical conveyors, thanks to optimized pipe diameters and low-pressure drop fittings. Additionally, the inert gas used in the explosion-proof system can be recycled and reinjected after purification, further reducing operating costs. Because lithium powder is valuable, the high-efficiency filter and cyclone collectors ensure extremely low product loss during transfer, maximizing yield and profitability. This environmentally responsible approach aligns with global sustainability trends and meets the stringent environmental regulations of Papua New Guinea. The successful implementation of this project proves that economic efficiency and safety can coexist in the design of industrial powder handling systems.

The company behind this innovative project, Shandong Headpowder Engineering Co., Ltd., has a strong international reputation for delivering quality equipment and turnkey solutions. Their team of engineers specializes in pneumatic conveying, dust collection, and bulk solids storage. With a registered address in China's Shandong province, the company serves clients worldwide. For this particular project, the main business contact is Manager Zhang, who can be reached via WeChat at 15662777102. Zhang's team facilitated smooth communication between the client in Madang and the engineering team in China, handling all technical clarifications and commercial negotiations. The project was completed within the scheduled timeframe and passed rigorous acceptance tests, including a full load trial run and explosion-proof integrity verification. Headpowder also signed a long-term maintenance agreement with the client, ensuring that spare parts and technical support remain available throughout the lifecycle of the equipment.

Looking ahead, the successful deployment of this lithium powder explosion-proof pneumatic conveying system in Madang sets a new standard for battery material handling in the Oceania region. It demonstrates that with careful engineering and the use of certified equipment, even the most hazardous powders can be handled safely and efficiently. This case study will serve as a valuable reference for other companies planning similar facilities in areas with limited local infrastructure. Headpowder intends to establish a regional service center in Oceania to provide faster response times and more convenient support for clients in Australia, New Zealand, and the Pacific Islands. By combining their expertise in pneumatic conveying with a deep understanding of local regulatory requirements, they are well positioned to grow their presence in this emerging market. The Madang project is not just a single achievement; it is a stepping stone toward broader cooperation and technological advancement in the field of safe powder transport across the region.
