AdelaideLithiumPowderExplosion-ProofPneumaticConveying

Project Title: AdelaideLithiumPowderExplosion-ProofPneumaticConveying. Key words: pneumatic conveying case, Oceania pneumatic conveying, explosion-proof pneumatic conveying. This article describes an explosion-proof pneumatic conveying project for lithium battery powder in Adelaide, Australia. The project was engineered and supplied by Shandong Headpowder Engineering Co., Ltd., abbreviated as headpowder. The company is located in Shandong, China. This system provides a safe, efficient, and reliable method for transferring lithium battery powder in a challenging explosive environment. The whole system was designed according to the specific characteristics of lithium battery powder and the strict Australian safety regulations. It is an excellent reference case for customers in Oceania and other markets.

Lithium battery powder is one of the most dangerous materials in powder handling. It has a very fine particle size and a low ignition energy. When the powder is suspended in air, it can form a combustible dust cloud. If an ignition source appears, a devastating explosion may happen. Therefore, conventional dilute-phase conveying using air is unsafe. To solve this problem, headpowder adopted a dense-phase pneumatic conveying system with nitrogen. Nitrogen replaces air as the conveying medium, creating an inert atmosphere throughout the pipeline. This method reduces the oxygen concentration to a safe level, preventing dust clouds from burning or exploding. The system also avoids high velocities that could generate electrostatic charges.

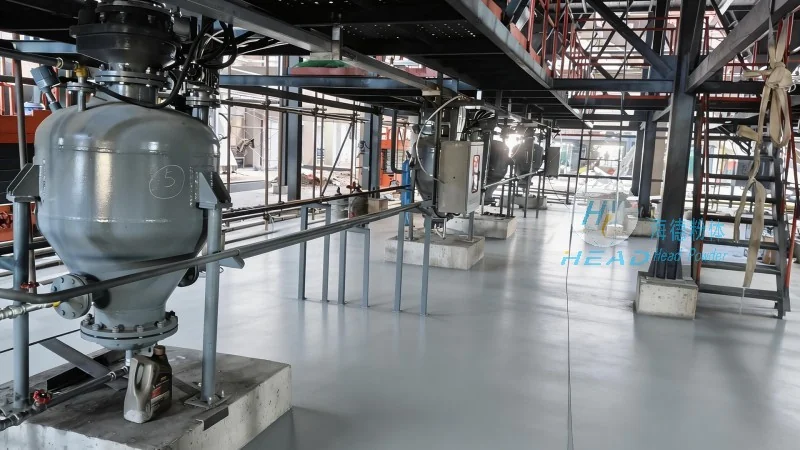

The main equipment for the Adelaide project includes a pressure vessel feeder, nitrogen supply unit, stainless steel pipes, a filter receiver, and a PLC-based control cabinet. The conveying line is designed with smooth inner surfaces to prevent powder accumulation. All rotary feeders and valves are explosion-proof certified. The system uses continuous grounding to dissipate any static electricity. A high-efficiency filter receiver separates the lithium powder from the gas flow without causing contamination. The capacity is designed according to the customer's production requirements, typically ranging from two to five tons per hour. The conveying distance and the number of bends were optimized to minimize particle degradation and blockage.

The control system plays a critical role in ensuring safe operation. Sensors for pressure, temperature, and differential pressure are installed along the conveying line. All data is sent to the PLC controller, which monitors the process in real time. If an abnormal condition is detected, the system immediately stops feeding, closes the isolation valves, and flushes the line with nitrogen. The operator can view the system status and alarm history on a touch screen interface. Automatic and manual modes are available for flexibility. The safety logic follows relevant international standards for explosive atmospheres, such as ATEX and IECEx, as well as Australian installation requirements. This ensures that the equipment can operate safely in hazardous areas.

This Adelaide project is a milestone for headpowder in the Oceania market. It demonstrates the company's capability to deliver complex explosion-proof pneumatic conveying systems abroad. Since commissioning, the system has been running reliably with minimal maintenance. The noise level is low, and energy consumption is reduced because dense-phase conveying uses less gas. The material quality is preserved, and product loss is negligible. This success has led to more inquiries from battery manufacturers in Australia and New Zealand. The engineering experience gained from this project also strengthens headpowder's ability to serve global customers in similar high-risk powder applications.

For further information about the AdelaideLithiumPowderExplosion-ProofPneumaticConveying project or any other pneumatic conveying solution, please contact headpowder. The full company name is Shandong Headpowder Engineering Co., Ltd. The address is in Shandong, China. The contact person is Manager Zhang. WeChat: 15662777102. headpowder specializes in design, manufacturing, and commissioning of pneumatic conveying systems for powder and bulk solids. We offer dense-phase, dilute-phase, and explosion-proof systems. We welcome customers from Oceania and the world to discuss your material handling challenges with us.
