ClosedNitrogenPneumaticConveyingofLFPPowder,LeedsUK

Optimized Title: Closed Nitrogen Pneumatic Conveying of LFP Powder, Leeds UK

Subtitle: Inert, Airtight and Fully Automated Dense-Phase Transfer for Lithium Iron Phosphate in a European Battery Material Plant

Keywords: pneumatic conveying case, European pneumatic conveying, LFP powder pneumatic conveying

Shandong Headpowder Engineering Co., Ltd. has successfully supplied a closed nitrogen pneumatic conveying system for lithium iron phosphate (LFP) powder at a demanding battery material production site in Leeds, United Kingdom. This project is an important European pneumatic conveying case because it demonstrates how fine, moisture-sensitive and oxidation-prone powders can be handled safely and cleanly under a completely inert atmosphere. The system is designed around the principle of closed-loop nitrogen conveying, meaning that the powder never comes into direct contact with ambient air, humidity or oxygen. As a result, the material retains its chemical stability, electrochemical performance and physical consistency from the discharge point to the final receiving vessel.

LFP powder is widely used as a cathode material in lithium-ion batteries. Its particle size is extremely fine, and its surface chemistry can be affected by even small amounts of moisture or oxygen. If such powder is conveyed in an open system, it may absorb water vapor, oxidize, agglomerate, or react with dust in the surrounding environment. Any of these changes can reduce battery capacity, shorten cycle life, and create inconsistencies in the final electrode material. Therefore, the customer required a conveying solution that could provide complete isolation from the external environment, maintain low oxygen and moisture levels, and prevent dust leakage. Headpowder responded with a custom engineered nitrogen closed pneumatic conveying system that meets all these requirements while maintaining efficient production throughput.

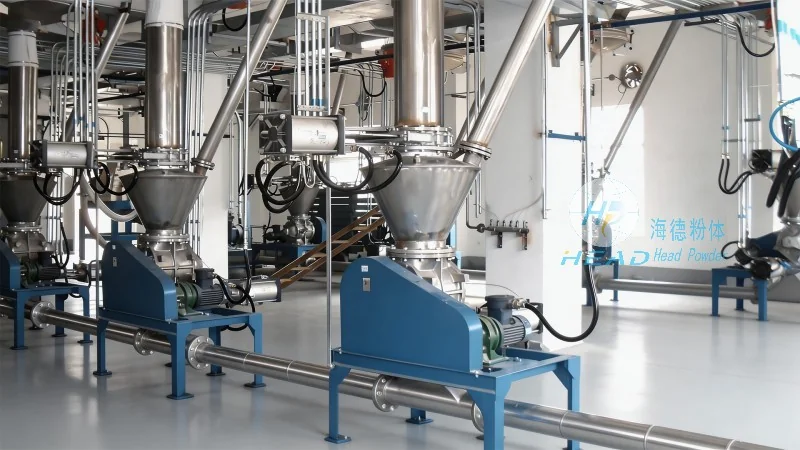

The complete conveying process begins at the feeding stage. LFP powder from upstream production equipment is fed into a specially designed feed hopper through an airtight rotary valve. The rotary valve acts as a pressure barrier, allowing powder to enter the system without admitting air. After the powder enters the pipeline, high-purity nitrogen is introduced to carry the material in dense phase. Dense-phase conveying uses lower gas velocity and a higher material-to-gas ratio, which is especially beneficial for LFP powder because it minimizes particle attrition, avoids abrasion of the pipeline, and reduces the risk of generating fine dust. The conveying pipeline is composed of smooth, wear-resistant tubes with carefully positioned bending sections that prevent material accumulation and reduce pressure loss. All flanged connections are sealed with high-performance gaskets to maintain airtight integrity throughout the entire distance.

At the receiving end, the material is separated from the nitrogen stream in a filtration receiver or bag filter unit. The particles fall into a discharge hopper while the nitrogen passes through the filter media. The closed-loop design allows the filtered nitrogen to be returned, purified and recirculated back into the system, which significantly reduces nitrogen consumption and operating costs. During the conveying cycle, online instrumentation continuously monitors critical parameters such as line pressure, differential pressure, gas flow rate, oxygen content, temperature and filter condition. An advanced PLC control system automatically regulates valve sequencing, gas pressure and material feed speed to ensure stable and repeatable conveying performance. If the oxygen concentration exceeds the preset safety threshold, the system will automatically take protective action, including nitrogen purging, pressure compensation or shutdown, depending on the alarm level.

Safety is one of the main reasons why this project is regarded as a model case for European pneumatic conveying. LFP powder is combustible under certain dust concentration conditions, and any accidental ignition or electrostatic discharge in an oxygen-rich environment could lead to a dangerous dust explosion. Because the entire conveying loop is filled with nitrogen, the oxygen level is maintained far below the limiting oxygen concentration required for combustion. In addition, all electrical components and instruments are selected to meet the requirements of the local European market and can be configured with ATEX-certified equipment if needed. The system also includes explosion venting panels, static grounding chains, flame-proof electrical installations and emergency nitrogen purging functions. These safety features provide thorough protection for the operators, the plant and the surrounding community.

For the customer in Leeds, the operational benefits have been substantial. The closed nitrogen pneumatic conveying system eliminates manual handling and the associated labor costs. It also prevents product contamination and off-specification batches caused by moisture pickup. The material quality remains stable from batch to batch, which is essential for a battery manufacturer that must satisfy strict traceability and quality assurance requirements. Furthermore, because the system is fully enclosed, there is no visible dust emission at the transfer points. The plant environment is cleaner, maintenance activities are reduced, and the risk of cross-contamination between different material grades is minimized. The modular design also makes it possible to extend the conveying distance or increase the number of receiving points in the future without replacing the entire system.

Shandong Headpowder Engineering Co., Ltd. has extensive experience in designing and manufacturing pneumatic conveying systems for lithium battery materials, chemical powders, food ingredients, mineral powders and many other bulk solids. The company is located in Shandong, China, and serves clients across Asia, Europe, the Middle East and other international markets. The Leeds LFP powder project is one of many successful references in the European region, showcasing Headpowder’s capability to combine engineering precision with practical operational reliability. From the initial material characterization and process calculation to pipeline routing, equipment selection, factory testing, on-site commissioning and after-sales service, Headpowder provides a complete solution that is tailored to the specific properties of the powder and the requirements of the end user.

In summary, the closed nitrogen pneumatic conveying of LFP powder in Leeds, UK, perfectly illustrates how advanced inert conveying technology can solve the unique challenges of modern battery material production. By using nitrogen as the conveying medium and keeping the material in a sealed environment throughout the entire transfer process, the system protects both product quality and plant safety. This successful case demonstrates Shandong Headpowder Engineering Co., Ltd.’s strong technical capability and its commitment to delivering high-performance pneumatic conveying systems in Europe and around the world. For more information about this pneumatic conveying case, European pneumatic conveying solutions, or LFP powder pneumatic conveying systems, please contact Zhang Manager at Shandong Headpowder Engineering Co., Ltd., located in Shandong, China. WeChat: 15662777102.
