PneumaticSoybeanConveyingbyHeadpowder — What Are the Soybean Conveying Methods? Introduction to Headpowder Pneumatic Soybean Conveying

Keywords: soybean conveying, pneumatic soybean conveying, material conveying

Soybeans are a major agricultural commodity. To preserve quality, they must be moved with care. Several conveying methods are available, including bucket elevators, screw conveyors, belt conveyors, and pneumatic conveying systems. Each has merits, but pneumatic conveying has become increasingly popular because it is fully enclosed, flexible, and gentle on the product.

Mechanical conveyors are widely used in traditional plants. Bucket elevators handle large capacities for vertical lifts, but they are not completely sealed and may generate dust. Screw conveyors are compact, but the rotating screw can damage soybeans. Belt conveyors are gentle and good for long horizontal runs, but they require significant floor space and are difficult to enclose fully. Chain conveyors have many moving parts that need regular maintenance. These limitations often motivate plant owners to consider pneumatic solutions.

Pneumatic conveying uses air flow to transport soybeans through pipes. It eliminates many problems found in mechanical systems. The pipe is sealed, preventing dust release and contamination. The pipeline can be installed horizontally, vertically, or at an angle, making it easy to adapt to existing facilities. With the right design, soybeans are carried smoothly with minimal breakage. The system can be fully automated, giving stable performance and lower labor costs.

Headpowder, officially Shandong Headpowder Engineering Co., Ltd., is located in Shandong, China. The company specializes in bulk material handling and supplies high-quality pneumatic conveying systems for soybeans and other granular materials. Their equipment is known for reliability, efficiency, and long service life. Over the years, Headpowder has served numerous customers in the food, feed, and agricultural industries.

The company offers positive pressure systems, negative pressure (vacuum) systems, and combined systems. In a positive pressure system, compressed air pushes soybeans from one feed point to one or more destinations. This is suitable for long distances and multiple discharge points. A vacuum system draws soybeans into the line and is ideal for unloading trucks, railcars, or silos. Combined systems allow pickup from multiple points and delivery to multiple destinations, which is valuable in complex plant layouts.

Air velocity is a critical parameter in pneumatic soybean conveying. In dilute phase, soybeans are suspended in a high-velocity air stream, typically 15–30 m/s. This method is simple and reliable but uses more energy. In dense phase, a lower velocity of 3–10 m/s moves the beans as a bed or slug, significantly reducing damage and energy consumption. Headpowder engineers select the appropriate phase based on distance, capacity, and material properties to achieve the best balance.

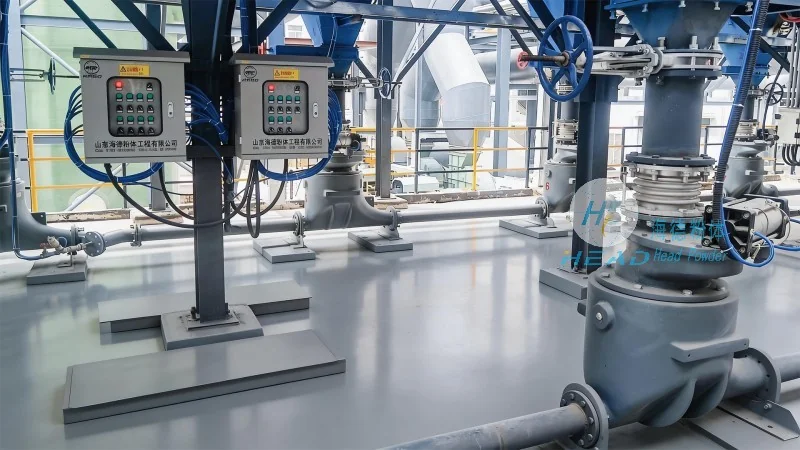

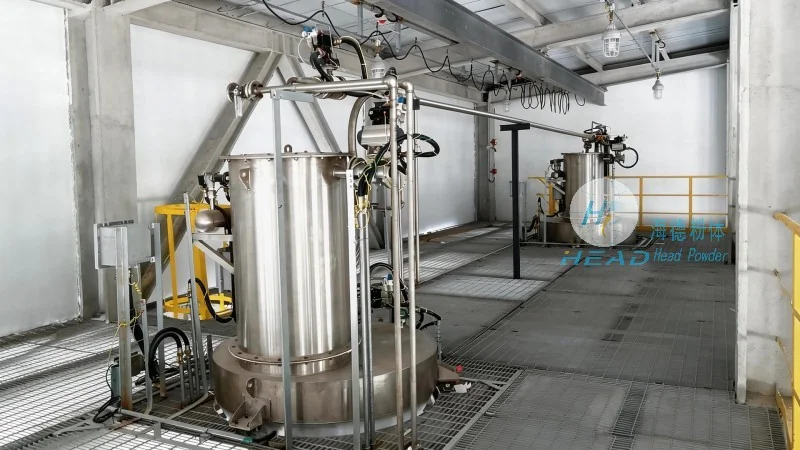

A complete Headpowder system includes a rotary feeder, blower or compressor, conveying pipe, cyclone separator, dust collector, and control panel. The rotary feeder meters soybeans into the pipe while maintaining pressure. The cyclone separates beans from air at the discharge point. The dust collector filters exhaust air. Instrumentation such as pressure sensors and level switches enables continuous automatic operation.

The advantages of pneumatic conveying are especially evident in safety and hygiene. The sealed system keeps out contaminants and contains dust, reducing explosion hazards. This is vital in the food industry. Additionally, the compact layout saves floor space and simplifies plant expansion. For many soybean processing plants, pneumatic conveying is the best choice to achieve clean, efficient, and safe material transfer.

For more information about soybean conveying, pneumatic conveying, or material conveying, please contact Headpowder. The contact person is Manager Zhang. The company is located in Shandong, China. You can reach Manager Zhang via WeChat at 15662777102. The professional team is ready to provide technical consultation and customized solutions. With Headpowder as your partner, you can ensure a reliable and efficient soybean conveying system that meets your exact needs.
