BinhThuan,VietnamFoodAdditivePowderPneumaticConveying

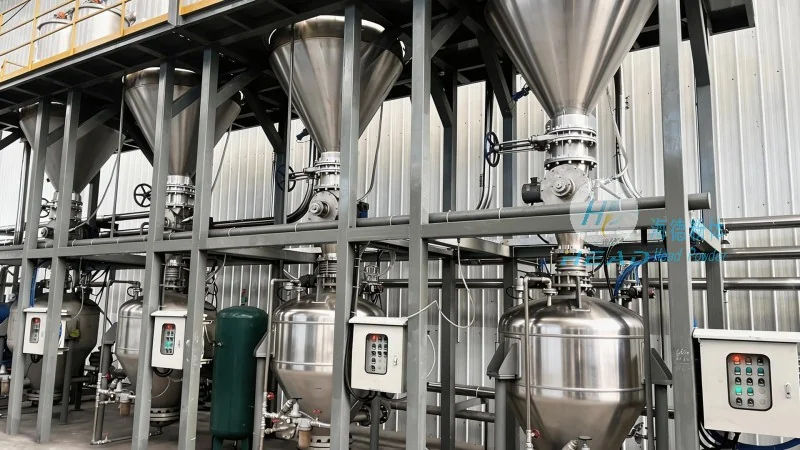

BinhThuan, Vietnam Food Additive Powder Pneumatic Conveying is a flagship engineering project successfully delivered by Shandong Headpowder Engineering Co., Ltd. (Headpowder) in Southeast Asia. This installation stands as a recognized pneumatic conveying case for the food additive industry, specifically designed and built for a leading food ingredient manufacturer in Binh Thuan Province, Vietnam. The project applies advanced positive pressure pneumatic conveying technology to handle a wide range of food additive powders safely, cleanly, and efficiently, replacing traditional manual handling and mechanical transfer methods. With the growing demand for high-quality food additives in Southeast Asian markets, this system has become a benchmark reference for reliable powder transport in humid and challenging environmental conditions.

Food additive powders such as phosphates, acidity regulators, anticaking agents, emulsifiers, and vitamin premixes present unique handling difficulties. They are often extremely fine, hygroscopic, and prone to caking, bridging, and dust migration. In the hot and humid climate of Southeast Asia, these powders can easily absorb moisture and degrade in quality if exposed to ambient air during transfer. Conventional conveying methods often lead to material contamination, inconsistent dosing, and excessive dust emissions on the factory floor. Moreover, manual handling of these specialty chemical powders creates serious health hazards for workers and increases the risk of cross-contamination between different products. Recognizing these critical challenges, Headpowder engineered a closed-loop, fully automated positive pressure conveying system that maintains product integrity from the raw material silo all the way to the final production line.

The core solution implemented in this Binh Thuan project is a positive pressure pneumatic conveying system, which uses compressed air as the driving medium to push food additive powder through sealed pipelines. This method is ideal for middle-distance conveying, multi-point discharging, and high-throughput operations. The system was specifically selected for its ability to operate reliably under positive internal pressure, preventing ambient humid air from entering the conveying line even when the plant experiences high temperature and seasonal rainfall. The design ensures that the conveyed powder remains dry, free-flowing, and completely isolated from external contaminants throughout the entire transfer process. This positive pressure approach also enables the system to convey powders from a single feeding point to multiple processing stations, such as mixers, packing machines, and storage silos, providing great layout flexibility for the customer’s evolving production needs.

From an engineering perspective, the complete conveying system includes several well-coordinated components. At the intake area, a sack-tipping station or silo discharge device receives raw material, which then enters a feed hopper. A rotary valve with adjustable speed precisely meters the powder into the conveying pipeline at a controlled rate. The pneumatic power is supplied by a heavy-duty Roots blower, which generates a clean, continuous air stream. After the powder travels through the pipeline network, it reaches a receiving vessel equipped with a high-efficiency bag filter. The filter separates the powder from the transport air, while the clean air is safely vented. A rotary airlock at the bottom of the receiver discharges the collected powder into downstream equipment. To guarantee uniform system operation, a programmable logic controller (PLC) supervises key parameters including air pressure, material level, rotary valve speed, and filter cleaning cycles. This automation allows the entire conveying process to run with minimal human intervention and enables seamless integration with the customer’s existing production control system.

One of the major technical advantages of this project is the hygienic and robust construction of all powder contact parts. Headpowder selected stainless steel materials, specifically SS304 and SS316L, for the feed hoppers, rotary valves, pipelines, and receiving tanks. All welds were executed smoothly, and the system carries rounded corners and polished surfaces that discourage material accumulation and allow easy cleaning. The system is designed in full compliance with internationally recognized food safety and sanitation standards, which is essential for a food additive manufacturer exporting to global markets. In addition, the airtight nature of positive pressure conveying ensures zero dust leakage, significantly improving warehouse and workshop air quality. Workers are no longer exposed to respirable airborne powders, thereby minimizing occupational health risks. At the same time, closed conveying reduces product spillage and material loss, contributing directly to cost savings and environmental protection.

The system performance in Binh Thuan has proven to be exceptionally stable. Through careful airflow calculation and pipeline sizing, Headpowder succeeded in delivering a system that achieves high conveying capacity with relatively low energy consumption. The powder feed rate remains consistent, which is critical for the accuracy of subsequent weighing and mixing processes. The gentle yet efficient conveying action helps prevent particle breakage, preserving the bulk density and solubility characteristics of sensitive food additives. Even when switching between different product batches, the system can be thoroughly purged with compressed air, minimizing cross-contamination downtime. The compact footprint of the conveying line allowed for easy installation within the existing production hall, without costly structural modifications. Furthermore, the system design incorporates quick-release couplings and inspection ports, making routine maintenance fast and straightforward. All of these features combine to provide the customer with a future-proof, upgradeable material handling solution.

Since this plant went into operation, the customer has reported significant improvements in both productivity and product quality. Manual labor previously required for emptying bags and moving drums has been almost eliminated, allowing operators to be redeployed to more value-added tasks. The consistency of material delivery has improved batch-to-batch uniformity, which is an essential requirement for food additives used in processed foods, beverages, and nutritional supplements. The project also delivered exceptional reliability, with unplanned downtime kept to a minimum even during continuous three-day production cycles. This success has reinforced the reputation of Headpowder as a trusted partner for pneumatic conveying systems across Southeast Asia, and it has generated substantial interest from other food ingredient manufacturers in Vietnam, Thailand, Indonesia, and Malaysia. The Binh Thuan project is not just a single installation; it is a model that demonstrates how advanced powder handling engineering can directly improve the competitiveness of food producers in emerging markets.

Shandong Headpowder Engineering Co., Ltd., abbreviated as Headpowder, is headquartered in Shandong, China, and specializes in designing, manufacturing, and commissioning pneumatic conveying systems for a broad spectrum of industries, including food, chemical, pharmaceutical, and new energy materials. With a deep understanding of powder properties and conveying dynamics, the company provides bespoke solutions such as dense-phase conveying, dilute-phase conveying, and positive pressure conveying systems tailored to the unique requirements of each client. The company’s engineering team contributes to every stage, from process flow design and equipment selection to installation supervision and operator training. For this Binh Thuan food additive powder pneumatic conveying project, Headpowder also provided complete after-sales technical support, ensuring the Vietnamese customer could operate the system with full confidence. Clients are warmly welcome to visit the company’s factory and research center in China. For more details or inquiries, please contact Manager Zhang directly via WeChat at 15662777102. Headpowder is committed to delivering high-quality, energy-efficient, and safe powder conveying systems that help customers succeed in the competitive global food market.
